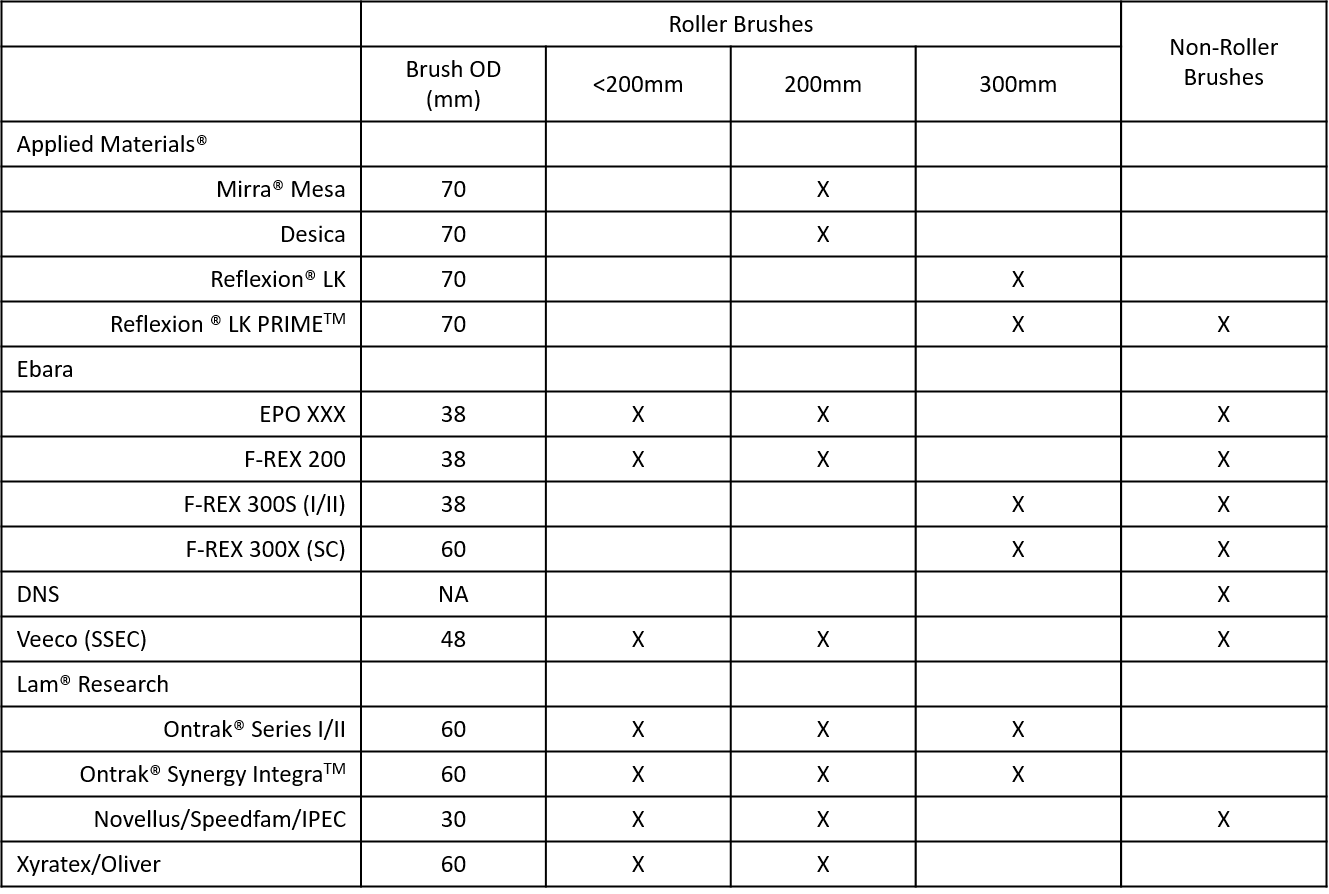

OEMs Supported



Flask in scientist hand and test tubes in rack

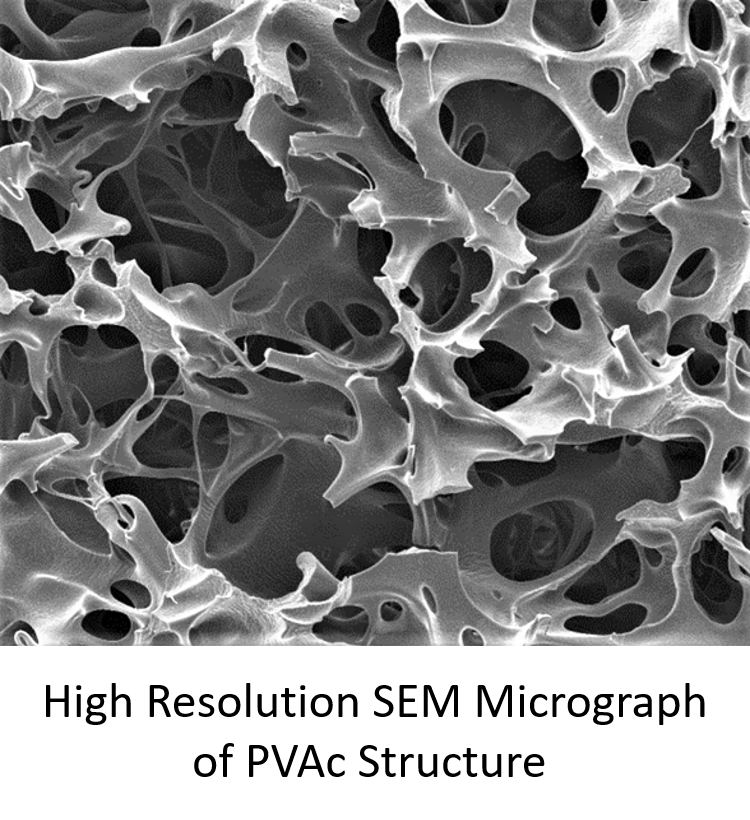

The final properties of the PVA material can be affected by a number of factors during the manufacturing process. These factors include the molecular weight of the polymer, the degree of hydrolysis of the raw PVOH as well as the concentration of the reactants. The degree of reaction, or acetalization will dramatically affect the resulting properties of the material. This is controlled by reaction times, temperature, reactant type and concentration.



Designed with optimized molecular crosslinking, slightly lower density, and higher water absorption; this stable formulation provides superior chemical compatibility leading to increased brush lifetime.



Incorporating an alternative acid catalyst, F2 provides a lower compressibility option to Symmetry with smaller median pore size; resulting in improved cleaning efficiency for more challenging FEoL hydrophobic films and layers (STI, SiN and poly-Si).



Formulated with cleaner raw materials to meet the growing demands of BEoL interconnect materials (Cu, Co, Ru), Eclipse provides the lowest commercially available compressive stress, preferred electrokinetic properties, and  lowest level of both releasable and trace metal contamination.


Eclipse HCS

Utilizing the same clean raw material package as Eclipse, Eclipse HCS has been reformulated to provide a higher compressive stress which delivers a more mechanical clean required for increasing numbers of ≤10nm FEoL/MoL (RMG) semiconductor layers with challenging and critical cleaning requirements.



Highly durable formulation used for critical cleaning applications that extend across many market segments including semiconductor, data storage, and MEMs.

Typical Physical Properties

  Hydrocell Symmetry F2 Eclipse Eclipse HCS
30% Compressive Stress (g/cm²) 170 95 73 68 90
Apparent Density (g/cm³) 0.117 0.100 0.097 0.098 0.101
% Water Absorption 849 1000 1040 1040 1012
% Porosity 87 89 90 90 90
Median Pore Size (μm) 153 125 89 81 80
